Gas struts serve as critical components in mechanical systems, enabling precise load distribution, smooth motion control, and reliable operation across industries. From automotive lift gates to aerospace applications, their performance hinges on technical specifications, proper installation, and rigorous maintenance protocols. This guide explores the fundamental principles of gas struts—including their construction, gas types, and force calculations—while examining real-world applications in industrial, automotive, and emergency systems. By addressing failure modes, troubleshooting techniques, and performance optimization, the discussion provides actionable insights for engineers, technicians, and designers seeking to maximize efficiency and longevity in high-stakes environments.

The integration of gas struts into mechanical assemblies demands a deep understanding of their operational dynamics, environmental adaptability, and safety considerations. Whether evaluating strut selection for robotic arms, mitigating risks in adjustable furniture, or ensuring deployment reliability in emergency systems, the interplay between technical specifications and practical implementation defines their success. This overview bridges theoretical fundamentals with hands-on protocols, offering a structured framework for assessing, installing, and maintaining gas struts to meet stringent performance demands.

measure gas struts

Technical Specifications of Gas Struts

Gas struts are precision-engineered mechanical components designed to support loads, control motion, and absorb shock through the regulated expansion and compression of gas. Their performance hinges on the interplay of structural components, gas properties, and environmental factors. Unlike traditional mechanical springs, gas struts offer adjustable force output, smoother damping, and extended durability under cyclic loading. This section dissects their core elements, gas selection criteria, comparative advantages over springs, and practical calculations for force and pressure determination.

Primary Components and Their Functional Roles

Gas struts consist of five critical components, each contributing to load-bearing, sealing integrity, and motion control:

- Cylinder Barrel: A precision-machined tube housing the piston, rod, and gas chamber. Materials range from cold-drawn steel (for high-pressure applications) to aluminum alloys (for lightweight designs). Surface treatments (e.g., chrome plating) enhance corrosion resistance and reduce friction.

  • Piston and Rod Assembly: The piston seals the gas chamber while the rod transmits force externally. Piston designs vary—single-acting (one-way force) or double-acting (bidirectional)—with rod coatings (e.g., PTFE) minimizing wear. Rod diameters and thread types (e.g., metric, UNF) dictate load capacity and stroke precision.
  • Sealing System: Composed of dynamic seals (e.g., polyurethane, nitrile rubber) and static seals (e.g., O-rings), these prevent gas leakage and contaminant ingress. Seal materials must match operating temperatures (e.g., silicone for -40°C to +200°C) and chemical exposure (e.g., Viton for solvents).
  • Gas Chamber: Contains the pressurized gas (typically nitrogen) and may include a gas charge valve for pressure adjustment. Chamber volume influences force consistency; larger volumes provide gradual force changes over longer strokes.
  • End Fittings and Mounting Hardware: Threaded, welded, or flanged connections ensure secure attachment to structures. Common standards include ISO 7/1, BSP, or custom designs for OEM applications.

    • The piston’s effective area (π × (rod diameter²)/4) determines force output, while the stroke length (maximum extension distance) defines the range of motion. Tolerances in these components (e.g., ±0.05mm for piston-to-barrel clearance) ensure repeatable performance.

    Gas Types and Their Properties in Gas Struts

    The choice of gas directly impacts a strut’s force characteristics, temperature stability, and longevity. Nitrogen and air are the most common, each suited to specific applications:
    Key Properties to Consider:
  • Pressure Range: Operational (working) and maximum allowable pressure (PSI/bar).
  • Temperature Resistance: Gas density and pressure vary with temperature; struts must compensate for thermal expansion (e.g., ±10% force variation per 10°C change).
  • Durability: Resistance to corrosion, oxidation, and moisture absorption.
  • Cost and Availability: Nitrogen is inert and expensive; air is economical but requires drying to prevent rust.
    • Gas TypePressure Range (PSI/bar)Temperature Range (°C)Durability FactorsCommon Applications
    Nitrogen (N₂)50–3,000 PSI (0.3–207 bar)-50 to +120Inert, no oxidation, long lifespanAutomotive (e.g., hood struts), aerospace
    Dry Air100–2,500 PSI (7–172 bar)-20 to +80Susceptible to moisture/rustIndustrial machinery, furniture hinges
    Argon/Helium Mix100–1,500 PSI (7–103 bar)-100 to +150High thermal stability, rare useExtreme environments (e.g., deep-sea equipment)
    Note: Gas struts for high-temperature applications (e.g., exhaust systems) may use argon or helium blends, while low-temperature struts (e.g., refrigeration) rely on nitrogen with thermal compensators.

    Comparison: Gas Struts vs. Mechanical Springs

    Gas struts and mechanical springs (e.g., torsion, coil, or leaf springs) serve similar load-support functions but differ in performance metrics. The following table highlights critical distinctions:
    Assumptions for Comparison:
  • Lifespan: Based on cycles to failure under 50% rated load.
  • Force Consistency: Variability over time (±5% for gas struts vs. ±10% for springs).
  • Weight: Per unit force output (N/mm).
  • Environmental Adaptability: Resistance to corrosion, temperature extremes, and chemical exposure.
    • MetricGas StrutMechanical Spring
    Lifespan (Cycles)10,000–500,000 (nitrogen-filled)10,000–100,000 (coil/torsion)
    Weight (N/mm)0.05–0.15 kg0.1–0.5 kg
    Force Consistency±3–5% over lifespan±8–15% (fatigue-induced sag)
    Stroke AdjustabilityYes (via gas charge)No (fixed geometry)
    Temperature Range-50°C to +120°C (nitrogen)-40°C to +150°C (varies by material)
    Corrosion ResistanceHigh (sealed system)Low (unless stainless steel)
    Damping CharacteristicsSmooth, adjustableMinimal (unless shock-absorbing)
    Cost (USD/unit)$5–$50 (OEM)$1–$20 (bulk)
    Key Insight: Gas struts excel in cyclic applications (e.g., car hoods, cabinet doors) where consistent force and low maintenance are critical. Springs dominate in high-load, static applications (e.g., suspension systems) due to lower cost and simplicity.

    Calculating Required Gas Pressure for a Strut

    The force output (F) of a gas strut is governed by Boyle’s Law and the piston’s effective area (A). The formula to determine the required gas pressure (P) is:
    Force Equation:
    \[
    F = P \times A \times \text{Efficiency Factor (η)}
    \]
    Where:
  • F = Desired force (N or lbf)
  • P = Gas pressure (PSI or bar)
  • A = Piston area (in² or mm²)
  • η = Seal friction and mechanical losses (typically 0.85–0.95)
    • Step-by-Step Calculation:
    1. Convert Units: Ensure consistency (e.g., 1 PSI = 0.0689 bar; 1 in² = 645.16 mm²).
    2. Determine Piston Area:
    \[
    A = \frac{\pi \times D^2}{4}
    \]
    Example: For a 20mm-diameter rod:
    \[
    A = \frac{\pi \times (20\, \text{mm})^2}{4} = 314.16\, \text{mm}^2 = 0.487\, \text{in}^2
    \]
    3. Apply Efficiency Factor:
    \[
    P = \frac{F}{A \times \eta}
    \]
    Example: For a 500N (112 lbf) load with η = 0.9:
    \[
    P = \frac{500\, \text{N}}{314.16\, \text{mm}^2 \times 0.9} = 1.82\, \text{bar} \approx 26.4\, \text{PSI}
    \]
    4. Adjust for Temperature:
    Use the Ideal Gas Law to compensate for thermal effects:
    \[
    P_2 = P_1 \times \frac{T_2}{T_1}
    \]
    Example: If T₁ = 20°C (293K) and T₂ = 80°C (353K):
    \[
    P_{80°C} = 1.82\, \text{bar} \times \frac{3

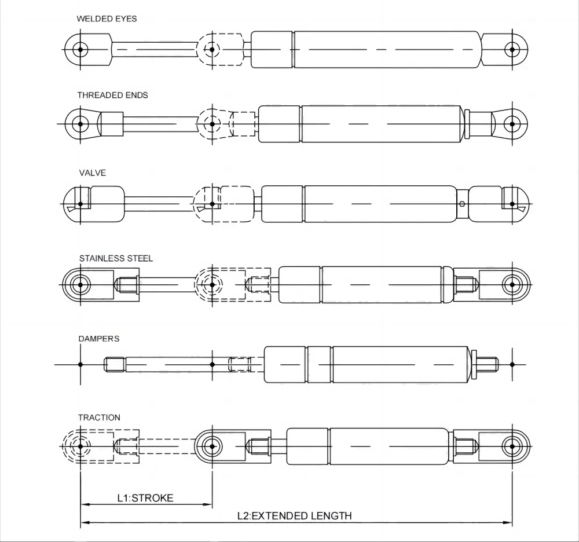

    measure gas struts - Ilustrasi 2

    Applications in Industrial and Automotive Systems

    Gas struts serve as critical mechanical actuators in both automotive and industrial sectors, where their ability to provide controlled force, stability, and precision under varying loads is indispensable. In automotive systems, they enable smooth operation of lift gates, hoods, and tailgates, while in industrial applications, they enhance functionality in robotic arms, medical equipment, and aerospace components. Their design—combining gas pressure, seals, and mechanical linkages—ensures reliability in environments demanding repeatability, shock absorption, or rapid deployment.

    The performance of gas struts in these applications is governed by factors such as load capacity, environmental resistance, and failure modes. Sudden release hazards, for instance, pose significant risks in automotive lift mechanisms, where improper sealing or excessive wear can lead to catastrophic failures. Meanwhile, in industrial settings, precision in force application and hysteresis control becomes paramount, particularly in robotic systems where positional accuracy directly impacts operational efficiency.

    Automotive Applications: Lift Gates, Hoods, and Tailgates

    Gas struts in automotive systems are engineered to support dynamic loads while ensuring user safety and vehicle functionality. Their primary roles include:
  • Lift Gates: Typically designed to support 50–150 kg (110–330 lbs) of vertical load, gas struts in lift gates must withstand repeated cycling without excessive hysteresis or drift. Failure risks include sudden release due to seal degradation or overloading, which can cause the gate to collapse unexpectedly. Modern struts incorporate dual-seal systems and load-rated valves to mitigate these hazards.
  • Hoods and Tailgates: These applications require lower force outputs (10–50 kg or 22–110 lbs) but demand smooth, consistent operation to prevent misalignment or binding. Common failure modes involve gas leakage (reducing damping) or mechanical binding from debris ingress, both of which compromise safety during emergency egress.
    • Critical Design Considerations for Automotive Gas Struts:
  • Load Capacity: Must exceed 1.5× the maximum expected load to account for dynamic forces (e.g., wind, user impact).
  • Temperature Range: Operate reliably between -40°C to +85°C without viscosity changes in the gas medium.
  • Corrosion Resistance: Zinc-plated or stainless-steel components are standard for automotive environments.

    • Niche Industrial Applications Requiring Precision or Shock Absorption

    Beyond automotive use, gas struts are deployed in specialized industrial sectors where their force modulation, damping characteristics, or compact design provide unique advantages. Key applications include:

    - Medical Equipment:

  • Adjustable hospital beds: Gas struts enable independent leg/back section adjustments with 0.5–2 kgf/cm² force resolution, critical for patient comfort and therapeutic positioning. Wear indicators (e.g., visual seal checks) and 6-month maintenance intervals are standard.
  • Surgical tables: High-precision struts with ±1% hysteresis ensure stable platforms during procedures.

    • - Aerospace:

  • Cargo bay doors: Struts must deploy within 2–5 seconds under G-force variations (up to 3G), with single-action reliability to prevent mid-flight failures. Redundant sealing and temperature-compensated gas charges are mandatory.
  • Escape slides: Emergency deployment struts use nitrogen-charged systems to ensure >95% success rate under extreme conditions (e.g., -54°C to +70°C).

    • - Heavy Machinery:

  • Excavator arm dampers: Gas struts absorb impact forces up to 5,000 N during digging, reducing hydraulic shock. Adjustable damping curves allow operators to customize responsiveness.
  • Conveyor systems: Low-friction struts support modular panel adjustments, enabling quick reconfiguration without tools.
    • Industry-Specific Performance Metrics:
    ApplicationKey RequirementTypical Specification
    Medical BedsForce Resolution0.5–2 kgf/cm²
    Aerospace Escape SlidesDeployment Speed<5 seconds at -54°C
    Excavator ArmsShock Absorption5,000 N peak force capacity
    Conveyor SystemsAdjustability±0.1° angular precision

    Selection Criteria for Gas Struts in Robotic Arms

    The integration of gas struts in robotic arms demands repeatability, minimal hysteresis, and customization to meet positional accuracy requirements. The following flowchart outlines the decision-making process for selecting appropriate struts:
    • Define Operational Requirements
      • Payload: Determine maximum static/dynamic load (e.g., 50 kg for collaborative robots vs. 500 kg for industrial arms).
      • Motion Profile: Identify speed (mm/s), acceleration (m/s²), and repeatability tolerance (e.g., ±0.1 mm for pick-and-place tasks).
      • Environmental Conditions: Specify temperature range, humidity resistance, and IP rating (e.g., IP67 for cleanroom applications).
    • Evaluate Strut Characteristics
      • Force vs. Extension Curve: Select struts with linear or progressive force profiles to match robotic joint torques. Hysteresis should be <5% to ensure positional consistency.
      • Customization Options:
        • Preload Adjustment: Allows fine-tuning of initial force to compensate for gravitational loads.
        • Stroke Length: Standard (100–500 mm) or custom lengths for articulated arms.
        • Gas Medium: Nitrogen (standard) or synthetic oils for high-temperature applications.
      • Mounting Configuration: Choose between single-acting (return spring) or double-acting (gas-only) based on power requirements.
    • Assess Failure Modes and Mitigations
      • Gas Leakage: Mitigated via double-lip seals and periodic pressure checks (every 6 months).
      • Mechanical Fatigue: Addressed with high-cycle endurance testing (e.g., 10⁶ cycles at rated load).
      • Thermal Drift: Compensated using temperature-compensated valves in precision applications.
    • Validation and Testing
      • Load Testing: Verify ±10% force consistency across the full stroke.
      • Dynamic Simulation: Use finite element analysis (FEA) to model strut behavior under robotic arm inertia.
      • Prototyping: Test with industrial robot controllers to validate integration with motion algorithms.
    Critical Formula for Robotic Arm Strut Selection:
    Required Force (N) = (Payload Mass × Acceleration) + (Friction Force + Safety Margin)
    Example: For a 20 kg payload accelerating at 1 m/s² with 5 kgf friction and 20% safety margin:
    Required Force = (20 × 1) + 5 + (25 × 0.2) = 30 N

    Functionality in Adjustable Furniture: Office Chairs and Hospital Beds

    Gas struts in adjustable furniture provide ergonomic support, load distribution, and durability over extended use cycles. Their operation relies on controlled gas expansion/compression, which translates user input (e.g., lever movement) into precise mechanical motion. Key components include:
  • Adjustable Valves: Allow incremental height or angle changes (e.g., 1° increments in hospital beds).
  • Damping Mechanisms: Reduce rebound effects during seating adjustments, improving comfort.
  • Wear Indicators: Visual or tactile markers (e.g., seal wear lines) signal maintenance needs.

    • Maintenance Intervals and Failure Modes:

  • Office Chairs: Struts typically last 5–10 years under normal use, with annual lubrication of moving parts. Common failures include gas leakage (causing slow adjustments) or valve binding from dust accumulation.
  • Hospital Beds: Struts undergo quarterly inspections for seal integrity and pressure calibration.

    • Installation and Maintenance Protocols for Gas Struts

    Gas struts are critical components in both industrial and automotive systems, ensuring precise motion control, load balancing, and structural integrity. Proper installation and rigorous maintenance protocols are essential to prevent premature failure, ensure operational safety, and optimize performance. This section outlines pre-installation inspection procedures, alignment techniques, replacement methodologies, and post-installation performance validation, including standardized testing protocols for durability and reliability.

    Pre-Installation Inspection Checklist for Gas Struts

    A thorough inspection before installation mitigates risks associated with defective or damaged components, which could lead to system malfunctions or safety hazards. The following checklist ensures gas struts meet operational and safety standards prior to deployment.

    Visual and Physical Inspection Criteria
    Gas struts must undergo a multi-stage inspection to verify structural integrity, seal effectiveness, and compatibility with the application. Key areas of focus include:

    - Corrosion and Surface Damage

    • Examine the outer cylinder, piston rod, and mounting points for signs of rust, pitting, or chemical etching. Corrosion weakens material integrity and may compromise sealing surfaces.
    • Use a 10x magnifying glass to inspect threaded sections and welds for micro-fractures or discoloration, which indicate potential stress points.
    • For stainless steel or coated struts, verify that protective layers remain intact; delamination or peeling suggests exposure to harsh environments.
  • Seal and O-Ring Integrity
    • Inspect dynamic seals (e.g., wiper seals, rod seals) for cracks, hardening, or contamination. Degraded seals lead to gas leakage and reduced damping performance.
    • Check static seals (e.g., end caps, mounting bushings) for proper compression and absence of extrusion. Use a pressure tester to confirm no air escape under 50 PSI for 30 seconds.
    • Verify that lubrication (if applicable) is evenly distributed along the rod; dry or clumped grease indicates improper storage or handling.
  • Leak Testing and Pressure Integrity
    • Perform a static pressure test by fully extending the strut and applying a load equivalent to 125% of the rated capacity for 1 minute. Observe for audible hiss or visible gas bubbles at seals.
    • For hydraulic-gas hybrid struts, use an ultrasonic leak detector to scan for micro-leaks in the bladder or piston assembly.
    • Document initial stroke length and force output using a digital force gauge to establish baseline performance metrics.
  • Compatibility and Dimensional Verification
    • Confirm that the strut’s mounting hardware (bolts, brackets, pins) matches the system specifications. Mismatched components risk misalignment or over-torquing.
    • Measure bore diameter and rod length against OEM drawings to ensure clearance in the assembly. Tolerances should not exceed ±0.5mm for critical applications.
    • For automotive applications, cross-reference the strut’s part number with the vehicle’s service manual to avoid counterfeit or incompatible replacements.
    Documentation and Traceability
    All inspection findings must be recorded in a non-destructive testing (NDT) log, including:
  • Date of inspection
  • Strut serial number and batch code
  • Identified defects (with photographs if applicable)
  • Corrective actions taken (e.g., replacement, cleaning)
  • Approval signature of the quality assurance (QA) technician

    • Alignment and Secure Mounting of Gas Struts

    Proper alignment ensures even load distribution, minimizes wear on seals, and prevents premature failure due to lateral forces. Misalignment can also lead to binding, excessive friction, or accelerated corrosion in high-vibration environments.

    Preparation for Installation

    1. Surface Preparation
      Clean mounting surfaces with ISO 12944-compliant degreaser to remove oil, dirt, or corrosion inhibitors. Use a wire brush for rusted steel and alcohol wipe for aluminum or composite brackets.
    2. Torque Specifications
      Gas struts require precise torque values to avoid over-stressing threads or under-securing the assembly. Refer to the manufacturer’s datasheet for:
      • Mounting bolt torque (e.g., M10 bolts: 50–60 Nm for steel, 35–45 Nm for aluminum).
      • Locking nut torque (if applicable, typically 10–20% higher than the primary bolt to prevent loosening).
      • Dynamic load torque for applications with cyclic motion (e.g., ±5 Nm tolerance for automotive hood struts).
    3. Alignment Tools and Techniques
      Use laser alignment guides or digital angle finders to ensure:
      • Axial alignment: Strut rod must be within ±1° of the intended motion path.
      • Radial clearance: Minimum 3mm gap between strut and surrounding components to prevent binding.
      • Parallelism: Mounting brackets must be flat within 0.1mm over the strut’s full stroke length (verified with a straightedge and feeler gauge).
    Step-by-Step Mounting Procedure
    1. Positioning
      Align the strut’s mounting pins or bushings with the assembly’s locating features. For ball-joint struts, ensure the spherical bearing seats correctly in the socket.
    2. Initial Fastening
      Hand-tighten all bolts to 50% of the specified torque before using a torque wrench to finalize. Apply torque sequentially (diagonal pattern) to avoid warping brackets.
    3. Locking Mechanisms
      For vibration-prone applications, apply thread-locking adhesive (e.g., Loctite 271) to bolt threads before final torque. Use prevailing torque bolts where specified.
    4. Post-Installation Verification
      • Operate the strut through full extension and retraction to confirm smooth motion and no audible grinding.
      • Recheck torque values after 24 hours to account for elastic relaxation in the mounting hardware.
      • For critical systems (e.g., aircraft landing gear), perform a load test at 150% of maximum expected load for 5 minutes.

    Comparison: OEM vs. Aftermarket Gas Struts

    Selecting between original equipment manufacturer (OEM) and aftermarket gas struts involves trade-offs in cost, warranty coverage, material quality, and system compatibility. The following table highlights key differences to inform procurement decisions.
    Parameter OEM Gas Struts Aftermarket Gas Struts Considerations
    Material Composition
    • High-grade chrome-molybdenum steel or aluminum alloys (e.g., 6061-T6 for weight-sensitive applications).
    • Seals made from fluorocarbon (FKM) or nitrile (NBR) with proprietary formulations.
    • Internal coatings (e.g., zinc-nickel plating) for corrosion resistance.
    • Varies by supplier; common materials include carbon steel (prone to rust) or lower-grade aluminum.
    • Seals may use standard NBR or silicone, which degrade faster in extreme temperatures.
    • Lack of specialized coatings unless specified in premium aftermarket lines.
    		 OEM struts are engineered for specific vehicle/industrial models, ensuring optimal performance.

    Failure Modes and Troubleshooting in Gas Struts

    Gas struts are critical components in industrial and automotive systems, where their reliability directly impacts operational efficiency and safety. Failures in gas struts often stem from mechanical stress, environmental degradation, or improper handling, leading to costly downtime and potential hazards. Understanding failure modes—such as seal degradation, gas leakage, or structural fatigue—enables proactive maintenance and targeted troubleshooting. This section systematically examines common failure points, diagnostic methodologies, and long-term performance considerations under extreme conditions, alongside non-destructive testing techniques for internal defect detection.

    Common Failure Modes and Associated Symptoms

    Gas struts exhibit distinct failure patterns, each manifesting through observable symptoms that correlate with root causes. Seal degradation, for instance, results in erratic extension/retraction, gas hissing, or incomplete locking due to compromised internal pressure. Gas leakage, often visible as oil residue or frost formation on the rod or housing, indicates compromised seals or corroded welds. Rod bending or buckling, typically caused by overloading or misalignment, produces uneven movement or binding resistance, while corrosion pitting on the rod or cylinder may lead to premature wear or catastrophic failure under cyclic loads.

    Key indicators of failure modes:

  • Seal Degradation:
  • Visual: Cracked or hardened seal material, residue around the rod.
  • Operational: Strut fails to hold position; slow or jerky movement.
  • Gas Leakage:
  • Visual: Frost (if refrigerant-based), oil streaks, or hissing sounds.
  • Operational: Reduced damping force; strut collapses prematurely.
  • Rod Bending/Buckling:
  • Visual: Permanent deformation, scoring on the rod.
  • Operational: Strut binds during extension; inconsistent force output.
  • Internal Corrosion:
  • Visual: Rust streaks, pitting, or discoloration on the rod or cylinder.
  • Operational: Increased friction, erratic force curves, or sudden failure.
  • Manufacturing Defects:
  • Visual: Uneven welds, improper surface finishes, or dimensional inconsistencies.
  • Operational: Intermittent locking, excessive noise, or failure at low loads.

    • Diagnostic Decision Tree for Gas Strut Failures

    A structured diagnostic approach isolates the root cause of failure by evaluating environmental exposure, operational history, and physical symptoms. Below is a nested decision tree to systematically narrow down potential causes, prioritizing overloading, environmental exposure, or manufacturing defects.

    Step 1: Assess Operational Symptoms
    Gas struts failing under normal conditions often point to manufacturing defects or premature wear, whereas failures after prolonged use typically relate to environmental stress or overloading. Begin by categorizing symptoms into three primary groups:

    - Mechanical Symptoms (Rod/Structural Issues):

  • Uneven extension/retraction → Likely misalignment or rod bending.
  • Binding or excessive friction → Corrosion or debris ingress.
  • Pressure-Related Symptoms (Gas Leakage/Seal Failure):
  • Hissing sounds or visible gas escape → Seal degradation or cracked housing.
  • Inconsistent force output → Gas leakage or contaminated gas.
  • Environmental Symptoms (Temperature/Exposure):
  • Brittleness or cracking in cold climates → Material embrittlement (e.g., NBR seals below -20°C).
  • Softening or swelling in high heat → Thermal degradation of seals or gas expansion beyond design limits.

    • Step 2: Evaluate Environmental and Load History
    Use the following criteria to refine the diagnosis:

    • Overloading Conditions:
      • Strut operated beyond its rated load capacity (e.g., lifting heavier than specified).
      • Frequent dynamic cycling (rapid extension/retraction) without rest periods.
      • Misalignment during installation (e.g., non-parallel mounting).
      Result: Rod bending, seal extrusion, or premature weld fatigue.
    • Environmental Exposure:
      • Operation in extreme temperatures (e.g., -40°C to 120°C) without compatible materials.
      • Exposure to corrosive agents (e.g., salt spray, chemicals, humidity).
      • UV degradation (outdoor applications with unprotected housings).
      Result: Seal hardening, gas leakage, or internal corrosion.
    • Manufacturing Defects:
      • Inconsistent wall thickness or weld quality in the cylinder.
      • Improper gas charge (under/over-pressurization).
      • Defective seals or coatings (e.g., improper vulcanization).
      Result: Intermittent failure, inconsistent force curves, or early-life defects.
    Step 3: Confirm Root Cause with Physical Inspection
    After narrowing down the likely cause, perform targeted inspections:
  • Visual Inspection: Use a 10x magnifier to check for seal cracks, corrosion, or weld imperfections.
  • Pressure Test: Attach a manometer to verify gas pressure; deviations from specifications indicate leakage.
  • Load Test: Apply gradual incremental loads to observe force consistency and binding points.

    • Depressurization and Safe Disposal of Damaged Gas Struts

    Damaged gas struts must be depressurized and disposed of in compliance with industrial safety regulations and environmental laws, particularly if they contain refrigerant gases (e.g., R-134a in automotive applications). Improper handling risks explosions (due to residual pressure) or ozone depletion (if refrigerant is vented).

    Procedure for Safe Depressurization:
    1. Isolate the Strut:

  • Disconnect from the system and secure the rod in a fixed position to prevent accidental extension.
  • Wear safety glasses and gloves to protect against debris or gas exposure.

    • 2. Release Pressure Gradually:

  • For refrigerant-filled struts, use a recovery machine to extract gas into a certified tank (complying with EPA/OSHA regulations).
  • For nitrogen/air-filled struts, puncture the seal end with a drill bit (minimum 3mm diameter) in a ventilated area, directing the release away from personnel.
    • Warning: Never use a torch or open flame near gas struts, as residual gas may ignite. 3. Dispose of Components:
  • Metal Components (Cylinder, Rod): Recycle as ferrous/non-ferrous scrap per local regulations (e.g., ISO 14001 standards).
  • Seals and Plastics: Incinerate in a hazardous waste facility if contaminated; otherwise, follow municipal waste guidelines.
  • Refrigerant Recovery: Document recovery in logs for compliance audits; retain records for 5–7 years (varies by region).

    • Regulatory Considerations:

  • Refrigerant Handling: Comply with EPA Section 608 (U.S.) or EU F-Gas Regulation 517/2014 for recovery and disposal.
  • Hazardous Materials: Struts with oil-impregnated seals may require RCRA (Resource Conservation and Recovery Act) classification.
  • Industrial Waste: Check OSHA 29 CFR 1910.1200 for chemical exposure limits during disassembly.

    • Effects of Extreme Temperatures on Gas Strut Performance

    Gas struts operating in sub-zero to high-temperature environments undergo material stress and gas property changes, directly impacting longevity and reliability. Extreme temperatures accelerate seal degradation, gas leakage, and structural fatigue, with failure modes varying by material composition and design.

    Low-Temperature Effects (-40°C to 0°C):

  • Gas Viscosity Increase: Nitrogen or air thickens, reducing damping efficiency and increasing extension/retraction force.
  • Seal Embrittlement: Elastomeric seals (e.g., NBR, EPDM) harden, leading to micro-cracking and premature failure. Example: A strut in Alaska’s winter (-50°C) may lose 30% of its force output within 6 months.
  • Material Brittleness: Carbon steel rods risk fracture if not low

    Gas struts represent a convergence of engineering precision and functional versatility, delivering tailored solutions for load-bearing, motion control, and shock absorption across diverse sectors. By mastering their technical specifications—such as gas chamber design, pressure dynamics, and force consistency—professionals can optimize system performance while mitigating risks like seal degradation or environmental stress. The applications span from automotive lift mechanisms to critical industrial and aerospace systems, where reliability and repeatability are non-negotiable. Through systematic installation protocols, proactive maintenance, and advanced troubleshooting, stakeholders can extend the service life of gas struts and ensure seamless operation in high-demand environments. This guide underscores the importance of a holistic approach, combining theoretical knowledge with practical execution to harness the full potential of gas struts in modern engineering challenges.

    • Leave a Comment

    Comments are moderated before appearing. The data you submit is processed according to the Privacy Policy of partner.football.org.il.
